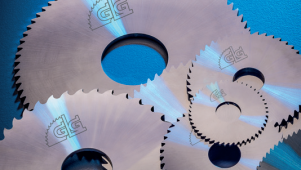

HSS, Carbide Freze Testereler

Her türlü metalin, pleksi ve plastik malzemelerin uygun devirlerde kesim ve işlemelerinde kullanılır. HSS ve solid carbide olarak iki farklı ürün kalitesi mevcuttur. HSS/Cobalt ve kaplamalı özel testereler istek üzerine ithal edilir. DIN1837 diş form yapısına sahiptir.

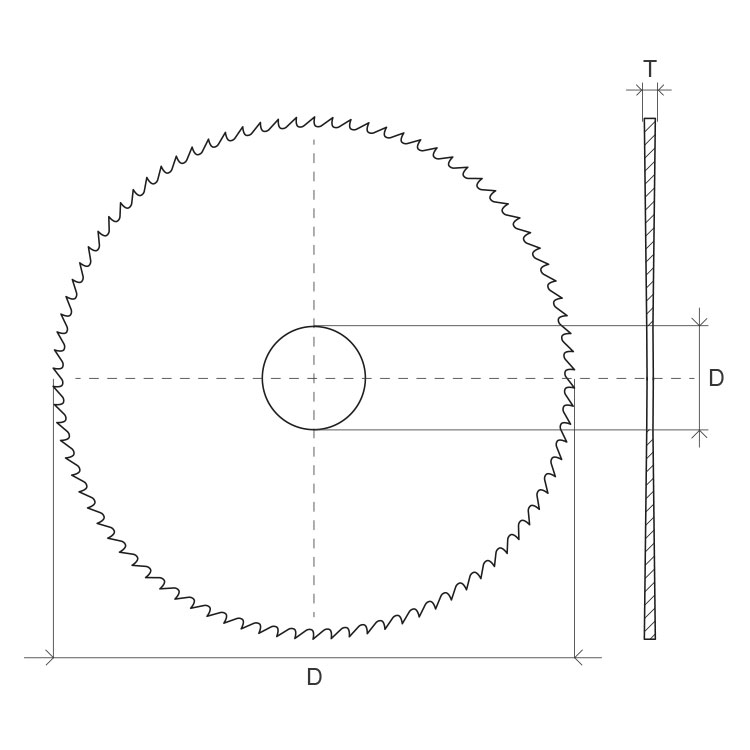

Teknik Çizim

Teknik Özellikleri

Çap (D)Kalınlık (T)Delik (D)Diş Sayısı (Z)
HSS
20 mm0.20 mm5 mm80 A
20 mm0.25 mm5 mm64 A
20 mm0.30 mm5 mm64 A
20 mm0.40 mm5 mm64 A
20 mm0.50 mm5 mm48 A
20 mm0.60 mm5 mm48 A
20 mm0.70 mm5 mm48 A
20 mm0.80 mm5 mm48 A
20 mm0.90 mm5 mm40 A
20 mm1.00 mm5 mm40 A
20 mm1.20 mm5 mm40 A
20 mm1.50 mm5 mm40 A
20 mm1.60 mm5 mm40 A
20 mm2.00 mm5 mm32 A
20 mm2.50 mm5 mm32 A
20 mm3.00 mm5 mm32 A
20 mm3.50 mm5 mm24 A
20 mm4.00 mm5 mm24 A
20 mm4.50 mm5 mm24 A
20 mm5.00 mm5 mm24 A
20 mm5.50 mm5 mm24 A
20 mm6.00 mm5 mm24 A
25 mm0.20 mm8 mm80 A
25 mm0.25 mm8 mm80 A
25 mm0.30 mm8 mm80 A
25 mm0.40 mm8 mm64 A
25 mm0.50 mm8 mm64 A
25 mm0.60 mm8 mm64 A
25 mm0.70 mm8 mm64 A
25 mm0.80 mm8 mm48 A
25 mm0.90 mm8 mm48 A
25 mm1.00 mm8 mm48 A
25 mm1.20 mm8 mm48 A
25 mm1.50 mm8 mm40 A
25 mm1.60 mm8 mm40 A
25 mm2.00 mm8 mm40 A
25 mm2.50 mm8 mm40 A
25 mm3.00 mm8 mm32 A
25 mm3.50 mm8 mm32 A
25 mm4.00 mm8 mm32 A
25 mm4.50 mm8 mm32 A
25 mm5.00 mm8 mm32 A
25 mm5.50 mm8 mm32 A
25 mm6.00 mm8 mm24 A
32 mm 0.20 mm8 mm100 A
32 mm0.25 mm8 mm100 A
32 mm0.30 mm8 mm80 A
32 mm0.40 mm8 mm80 A
32 mm0.50 mm8 mm80 A
32 mm0.60 mm8 mm64 A
32 mm0.70 mm8 mm64 A
32 mm0.80 mm8 mm64 A
32 mm0.90 mm8 mm64 A
32 mm1.00 mm8 mm64 A
32 mm1.20 mm8 mm48 A
32 mm1.50 mm8 mm48 A
32 mm1.60 mm8 mm48 A
32 mm2.00 mm8 mm48 A
32 mm2.50 mm8 mm40 A
32 mm3.00 mm8 mm40 A
32 mm3.50 mm8 mm40 A
32 mm4.00 mm8 mm40 A
32 mm4.50 mm8 mm40 A
32 mm5.00 mm8 mm32 A
32 mm5.50 mm8 mm32 A
32 mm6.00 mm8 mm32 A
40 mm0.20 mm10 mm128 A
40 mm0.25 mm10 mm100 A
40 mm0.30 mm10 mm100 A
40 mm0.40 mm10 mm100 A
40 mm0.50 mm10 mm80 A
40 mm0.60 mm10 mm80 A
40 mm0.70 mm10 mm80 A
40 mm0.80 mm10 mm80 A
40 mm0.90 mm10 mm64 A
40 mm1.00 mm10 mm64 A
40 mm1.20 mm10 mm64 A
40 mm1.50 mm10 mm64 A
40 mm1.60 mm10 mm64 A
40 mm2.00 mm10 mm48 A
40 mm2.50 mm10 mm48 A
40 mm3.00 mm10 mm48 A
40 mm3.50 mm10 mm40 A
40 mm4.00 mm10 mm40 A
40 mm4.50 mm10 mm40 A
40 mm5.00 mm10 mm40 A
40 mm5.50 mm10 mm40 A
40 mm6.00 mm10 mm40 A
50 mm0.20 mm13 mm128 A
50 mm0.25 mm13 mm128 A
50 mm0.30 mm13 mm128 A
50 mm0.40 mm13 mm100 A
50 mm0.50 mm13 mm100 A
50 mm0.60 mm13 mm100 A
50 mm0.70 mm13 mm80 A
50 mm0.80 mm13 mm80 A
50 mm0.90 mm13 mm80 A
50 mm1.00 mm13 mm80 A
50 mm1.20 mm13 mm80 A
50 mm1.50 mm 13 mm64 A
50 mm1.60 mm13 mm64 A
50 mm2.00 mm13 mm64 A
50 mm2.50 mm13 mm64 A
50 mm3.00 mm13 mm48 A
50 mm3.50 mm13 mm48 A
50 mm4.00 mm13 mm48 A
50 mm4.50 mm13 mm48 A
50 mm5.00 mm13 mm48 A
50 mm5.50 mm13 mm40 A
50 mm6.00 mm13 mm40 A
63 mm0.25 mm16 mm160 A
63 mm0.30 mm16 mm128 A
63 mm0.40 mm16 mm128 A
63 mm0.50 mm16 mm128 A
63 mm0.60 mm16 mm100 A
63 mm0.70 mm16 mm100 A
63 mm0.80 mm16 mm100 A
63 mm0.90 mm16 mm100 A
63 mm1.00 mm16 mm100 A
63 mm1.20 mm16 mm80 A
63 mm1.50 mm16 mm80 A
63 mm1.60 mm16 mm80 A
63 mm2.00 mm16 mm80 A
63 mm2.50 mm16 mm64 A
63 mm3.00 mm16 mm64 A
63 mm3.50 mm16 mm64 A
63 mm4.00 mm16 mm64 A
63 mm4.50 mm16 mm48 A
63 mm5.00 mm16 mm48 A
63 mm5.50 mm16 mm48 A
63 mm6.00 mm16 mm48 A
80 mm0.30 mm22 mm160 A
80 mm0.40 mm22 mm160 A
80 mm0.50 mm22 mm128 A
80 mm0.60 mm22 mm128 A
80 mm0.70 mm22 mm128 A
80 mm0.80 mm22 mm128 A
80 mm0.90 mm22 mm100 A
80 mm1.00 mm22 mm100 A
80 mm1.20 mm22 mm100 A
80 mm1.50 mm22 mm100 A
80 mm1.60 mm22 mm100 A
80 mm2.00 mm22 mm80 A
80 mm2.50 mm22 mm80 A
80 mm3.00 mm22 mm80 A
80 mm3.50 mm 22 mm64 A
80 mm4.00 mm22 mm64 A
80 mm4.50 mm22 mm64 A
80 mm5.00 mm22 mm64 A
80 mm5.50 mm22 mm64 A
80 mm6.00 mm22 mm64 A
100 mm0.40 mm22 mm160 A
100 mm0.50 mm22 mm160 A
100 mm0.60 mm22 mm160 A
100 mm0.70 mm22 mm128 A
100 mm0.80 mm22 mm128 A
100 mm0.90 mm22 mm128 A
100 mm1.00 mm22 mm128 A
100 mm1.20 mm22 mm128 A
100 mm1.50 mm22 mm100 A
100 mm1.60 mm22 mm100 A
100 mm2.00 mm22 mm100 A
100 mm2.50 mm22 mm100 A
100 mm3.00 mm22 mm80 A
100 mm3.50 mm22 mm80 A
100 mm4.00 mm22 mm80 A
100 mm4.50 mm22 mm80 A
100 mm5.00 mm22 mm80 A
100mm5.50 mm22 mm64 A
100 mm6.00 mm22 mm64 A
125 mm0.50 mm22 mm160 A
125 mm0.60 mm22 mm160 A
125 mm0.70 mm22 mm160 A
125 mm0.80 mm22 mm160 A
125 mm0.90 mm22 mm160 A
125 mm1.00 mm22 mm160 A
125 mm1.20 mm22 mm128 A
125 mm1.50 mm22 mm128 A
125 mm1.60 mm22 mm128 A
125 mm2.00 mm22 mm128 A
125 mm2.50 mm22 mm100 A
125 mm3.00 mm22 mm100 A
125 mm3.50 mm22 mm100 A
125 mm4.00 mm22 mm100 A
125 mm4.50 mm22 mm100 A
125 mm5.00 mm22 mm80 A
125 mm5.50 mm22 mm80 A
125 mm6.00 mm22 mm80 A
160 mm1.00 mm32 mm160 A
160 mm1.20 mm32 mm160 A
160 mm1.50 mm32 mm160 A
160 mm1.60 mm32 mm160 A
160 mm2.00 mm32 mm128 A
160 mm2.50 mm32 mm128 A
160 mm3.00 mm32 mm128 A
160 mm3.50 mm32 mm128 A
160 mm4.00 mm32 mm100 A
160 mm4.50 mm32 mm100 A
160 mm5.00 mm32 mm100 A
160 mm5.50 mm32 mm100 A
160 mm6.00 mm32 mm100 A
200 mm1.00 mm32 mm200 A
200 mm1.20 mm32 mm200 A
200 mm1.50 mm32 mm160 A
200 mm1.60 mm32 mm160 A
200 mm2.00 mm32 mm160 A
200 mm2.50 mm32 mm160 A
200 mm3.00 mm32 mm128 A
200 mm3.50 mm32 mm128 A
200 mm4.00 mm32 mm128 A
200 mm4.50 mm32 mm128 A
200 mm5.00 mm32 mm128 A
200 mm5.50 mm32 mm128 A
200 mm6.00 mm32 mm100 A
250 mm1.60 mm32 mm200 A
250 mm2.00 mm32 mm200 A
250 mm2.50 mm32 mm160 A
250 mm3.00 mm32 mm160 A
250 mm4.00 mm32 mm160 A
250 mm5.00 mm32 mm128 A
250 mm6.00 mm32 mm128 A
315 mm2.50 mm40 mm200 A
315 mm3.00 mm40 mm200 A
315 mm4.00 mm40 mm160 A
315 mm5.00 mm40 mm160 A
315 mm6.00 mm40 mm160 A
----
Solid Carbide
63 mm0.80 mm16 mm100 A
63 mm1.00 mm16 mm100 A
63 mm1.20 mm16 mm100 A
63 mm1.50 mm16 mm80 A
63 mm1.60 mm16 mm80 A
63 mm2.00 mm16 mm80 A
63 mm2.50 mm16 mm80 A
63 mm3.00 mm16 mm64 A
63 mm4.00 mm16 mm64 A
63 mm5.00 mm16 mm64 A
63 mm6.00 mm16 mm64 A
80 mm0.80 mm22 mm128 A
80 mm1.00 mm22 mm100 A
80 mm1.20 mm22 mm100 A
80 mm1.50 mm22 mm100 A
80 mm1.60 mm22 mm100 A
80 mm2.00 mm22 mm80 A
80 mm2.50 mm22 mm80 A
80 mm3.00 mm22 mm80 A
80 mm4.00 mm22 mm64 A
80 mm5.00 mm22 mm64 A
80 mm6.00 mm22 mm64 A
100 mm0.80 mm22 mm128 A
100 mm1.00 mm22 mm128 A
100 mm1.20 mm22 mm128 A
100 mm1.50 mm22 mm100 A
100 mm1.60 mm22 mm100 A
100 mm2.00 mm22 mm100 A
100 mm2.50 mm22 mm100 A
100 mm3.00 mm22 mm80 A
100 mm4.00 mm22 mm80 A
100 mm5.00 mm22 mm80 A
100 mm6.00 mm22 mm64 A
125 mm0.80 mm22 mm160 A
125 mm1.00 mm22 mm160 A
125 mm1.20 mm22 mm128 A
125 mm1.50 mm22 mm128 A
125 mm1.60 mm22 mm128 A
125 mm2.00 mm22 mm128 A
125 mm2.50 mm22 mm100 A
125 mm3.00 mm22 mm100 A
125 mm4.00 mm22 mm100 A
125 mm5.00 mm22 mm80 A
125 mm6.00 mm22 mm80 A
160 mm1.20 mm32 mm160 A
160 mm1.60 mm32 mm160 A
160 mm2.00 mm32 mm128 A
  • Tesa Makine bileme hizmeti sunar.
  • Fabrikasyon hatalara karşı garantilidir.
  • Made in Spain
  • Özel dişli, pim delikli, kamalı, açılı özel ölçü siparişleri alınır.
Marka Kataloğu Türkiye Yetkili Satıcısı: Tesa Makine
